Dual Lens Front and Cabin Dash Cam

DESCRIPTION

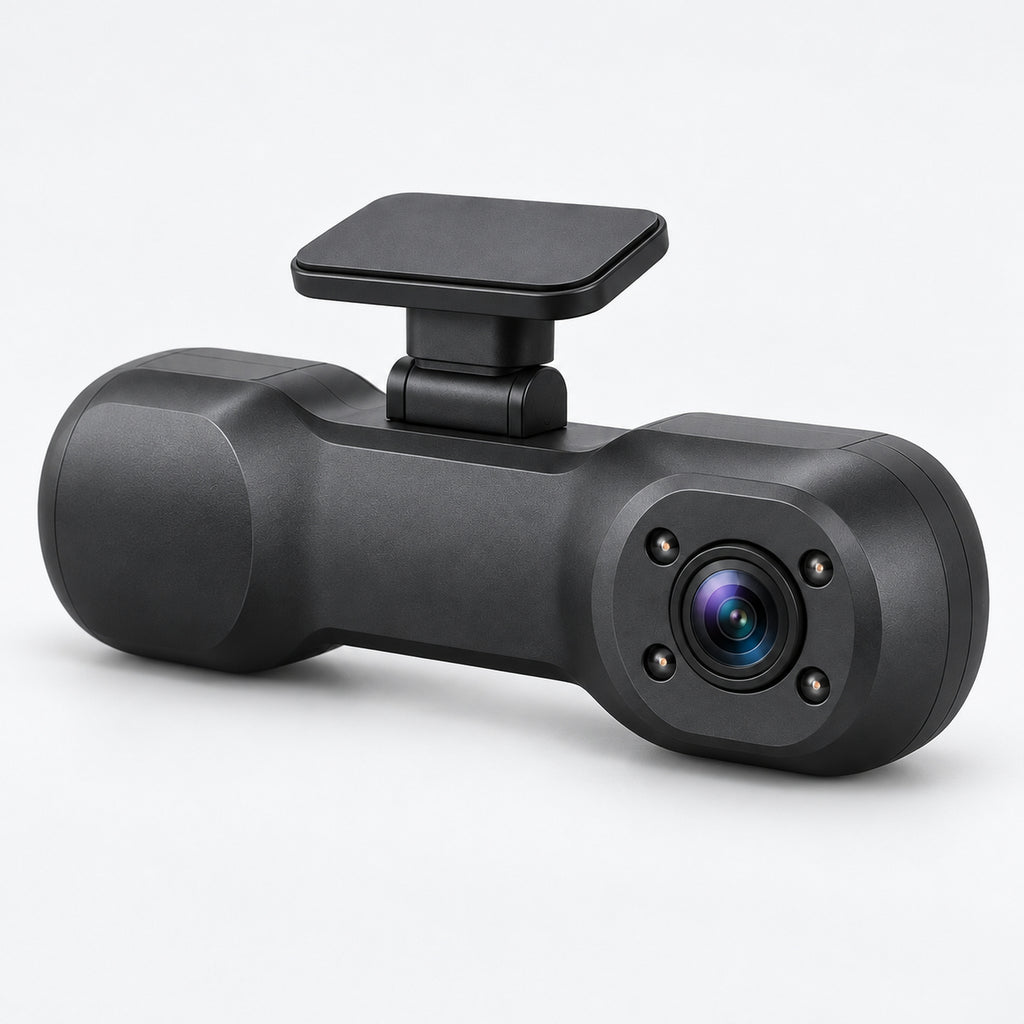

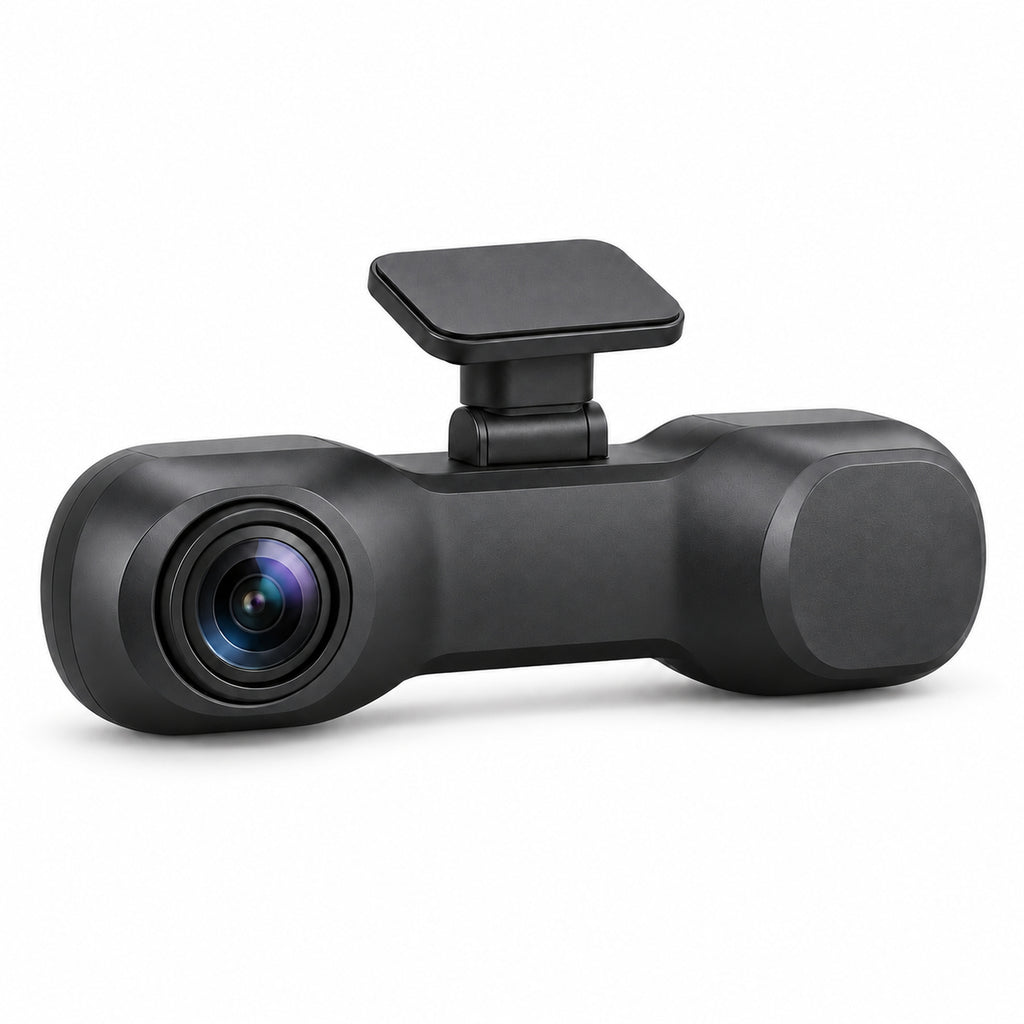

A short bridge-shaped body brings front and cabin recording into one unit. Rounded end modules and a narrow center section distinguish it from conventional box-shaped cameras. The adjustable cabin module is planned with infrared illumination for viewing the interior in reduced light.

The proposed dual-channel configuration records the road and cabin at 1080p simultaneously. Position the road lens outward and rotate the cabin module inward before use. The front and cabin lenses are shown in opposite directions in the revised studio views. There is no separate rear-window camera in this configuration. The screen-free layout uses local wireless access for setup and clip review while parked.

Power is supplied through a USB-C connection and the included vehicle power adapter. The proposed design uses a supercapacitor for short shutdown support rather than a rechargeable lithium battery; it does not record independently after external power is removed. All recording requires a compatible memory card and a working power supply.

SPECIFICATIONS
Recording channels: 2
Recording resolution and frame rate: Front 1920 × 1080 at 30 fps + cabin 1920 × 1080 at 30 fps simultaneously

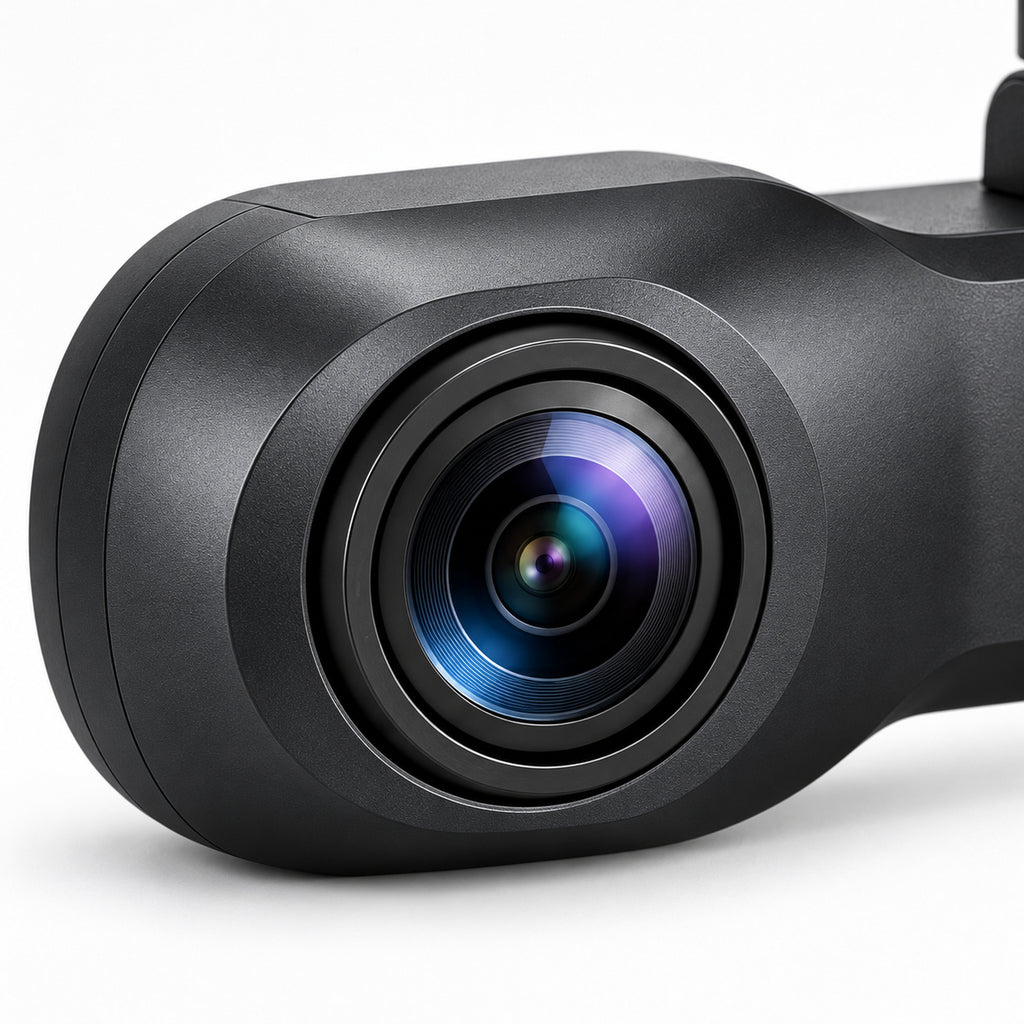

Lens coverage (approximate diagonal field of view): 140° front / 140° cabin
Display: Screen-free
Color: Matte charcoal black
Housing: PC/ABS polymer; optical lens and internal electronics
Storage: One 64 GB high-endurance microSD card in the kit
Connectivity: 2.4 GHz local Wi-Fi for parked setup and local clip transfer
Recording features: Loop recording, manual clip lock, impact-triggered event lock, adjustable audio recording
Cabin infrared illumination: On the cabin lens only

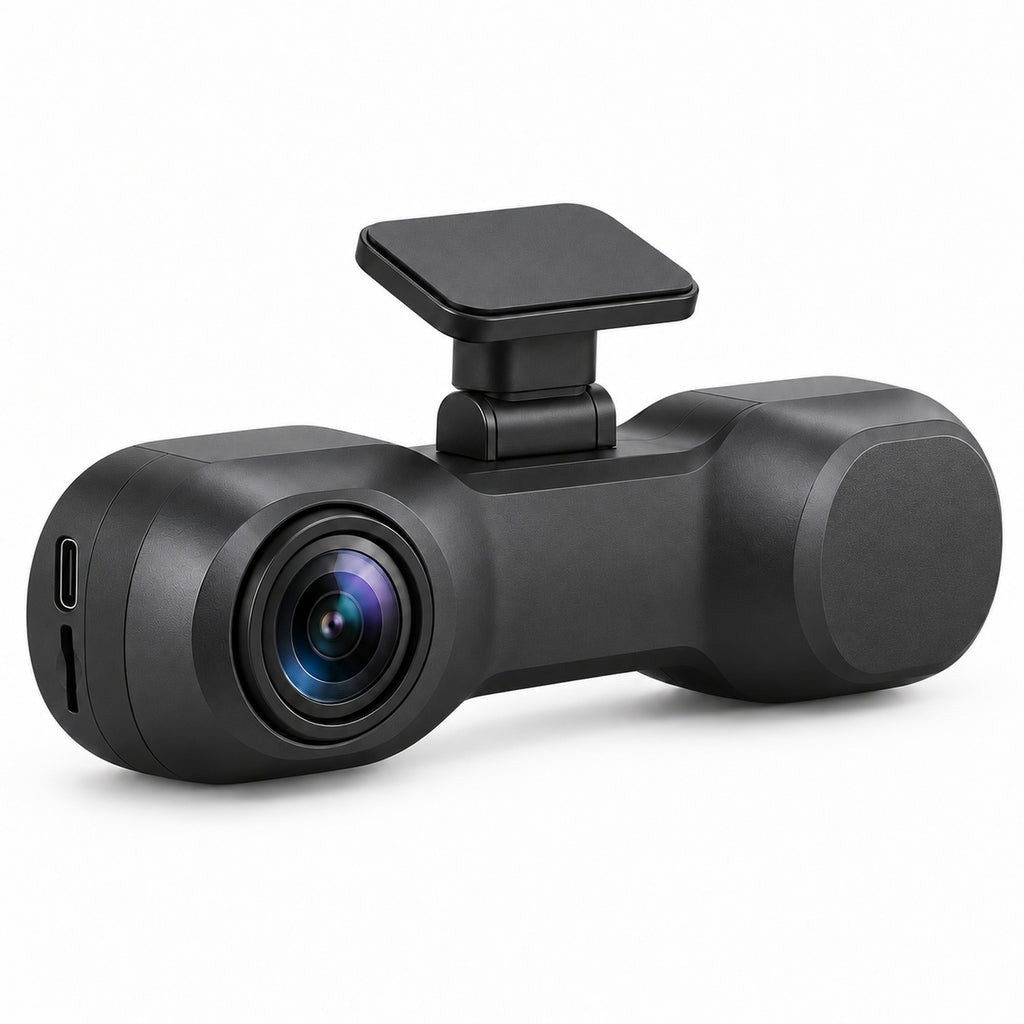

Power input: 5 V DC through USB-C, up to 2 A
Vehicle adapter: 12–24 V DC accessory socket input, regulated 5 V output
Energy storage: Supercapacitor; no internal lithium-ion battery and no coin-cell battery

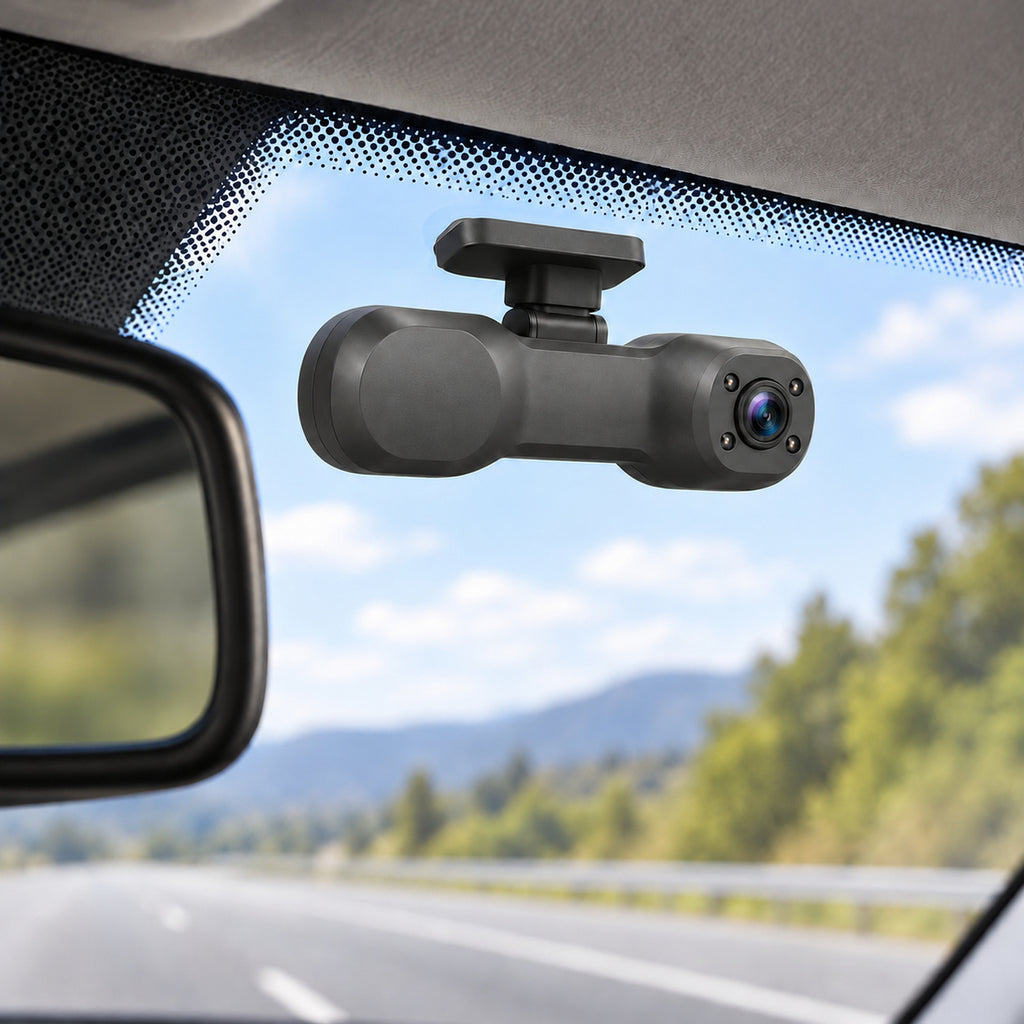

Mounting: Adhesive windshield mount; verify glass angle and clearance
Parking recording: Not included in the base specification
GPS / cloud / remote cellular access: Not included in the base specification
Standalone wireless operation: No; continuous wired external power is required

DIMENSIONS
108 × 37 × 39 mm
USB-C power cable length: 3.5 m (11.48 ft)
Rear connection cable length: Not included
Outer shipping carton: 18 × 13 × 7 cm

WEIGHT
Camera body weight, main unit: 0.145 kg
Complete sellable kit excluding outer shipping carton: 0.350 kg
Packed shipment: 0.420 kg

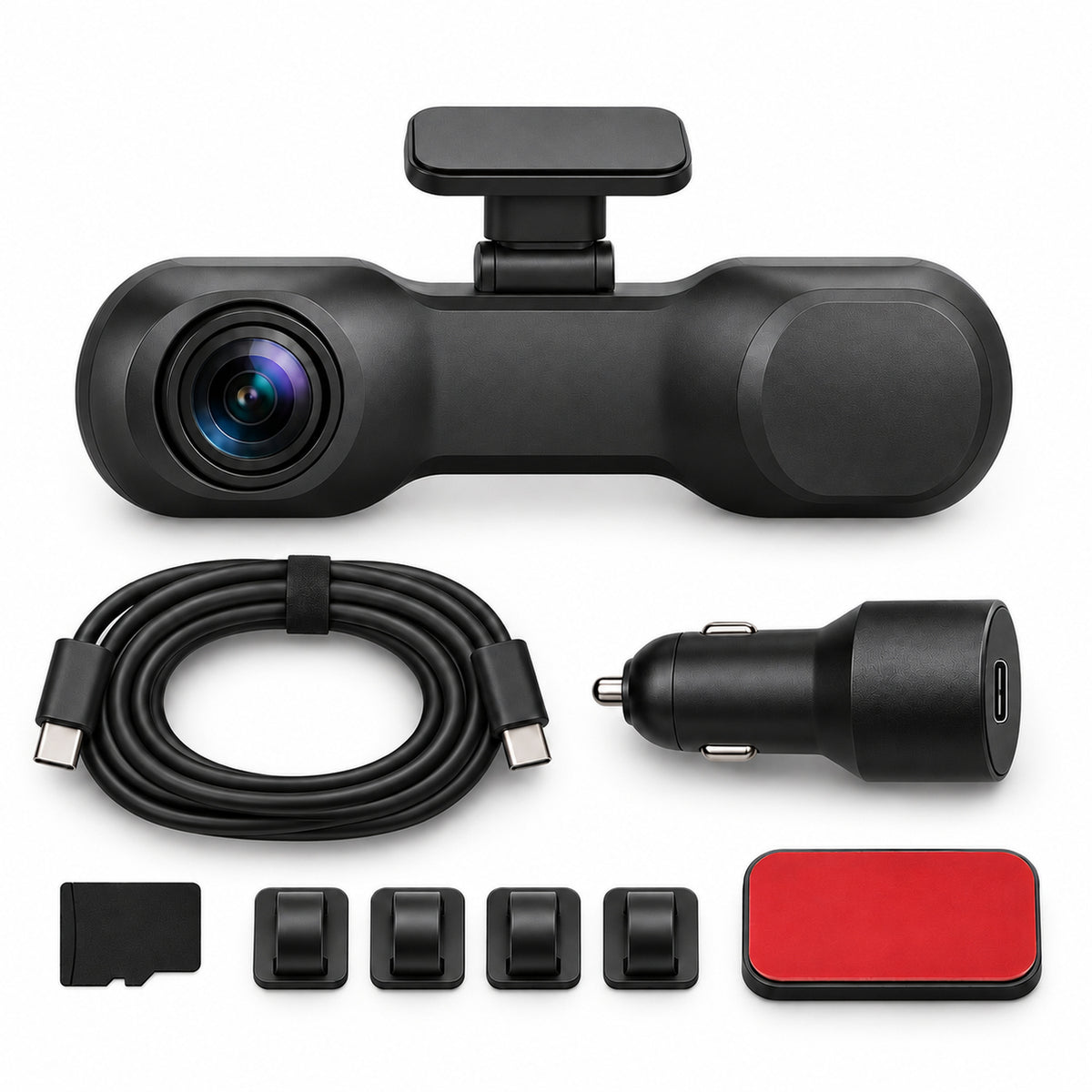

BOX CONTENTS
1 × Main dash camera with adhesive mount
1 × 3.5 m USB-C power cable
1 × 12–24 V vehicle power adapter
1 × Blank 64 GB high-endurance memory card
4 × Cable clips
1 × Spare adhesive pad
