Wide Screen Front and Rear Dash Cam

DESCRIPTION

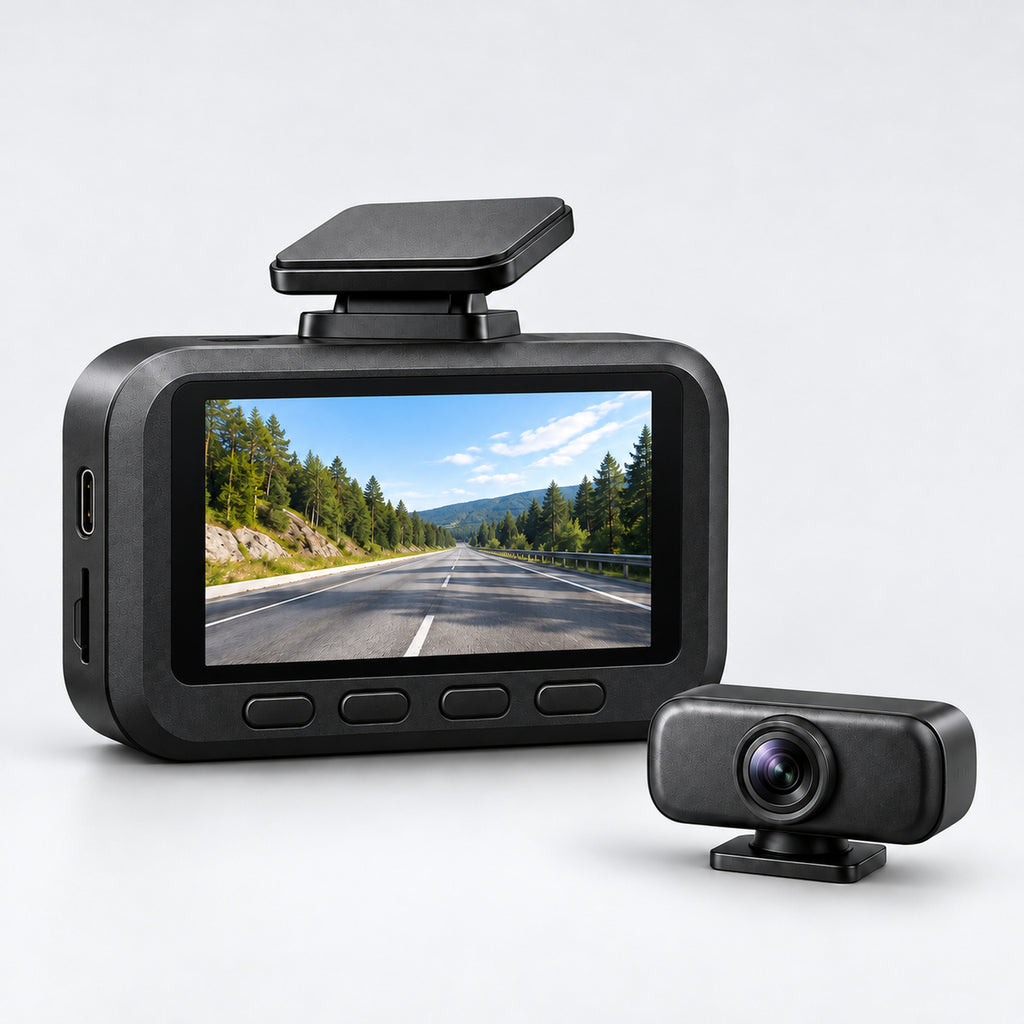

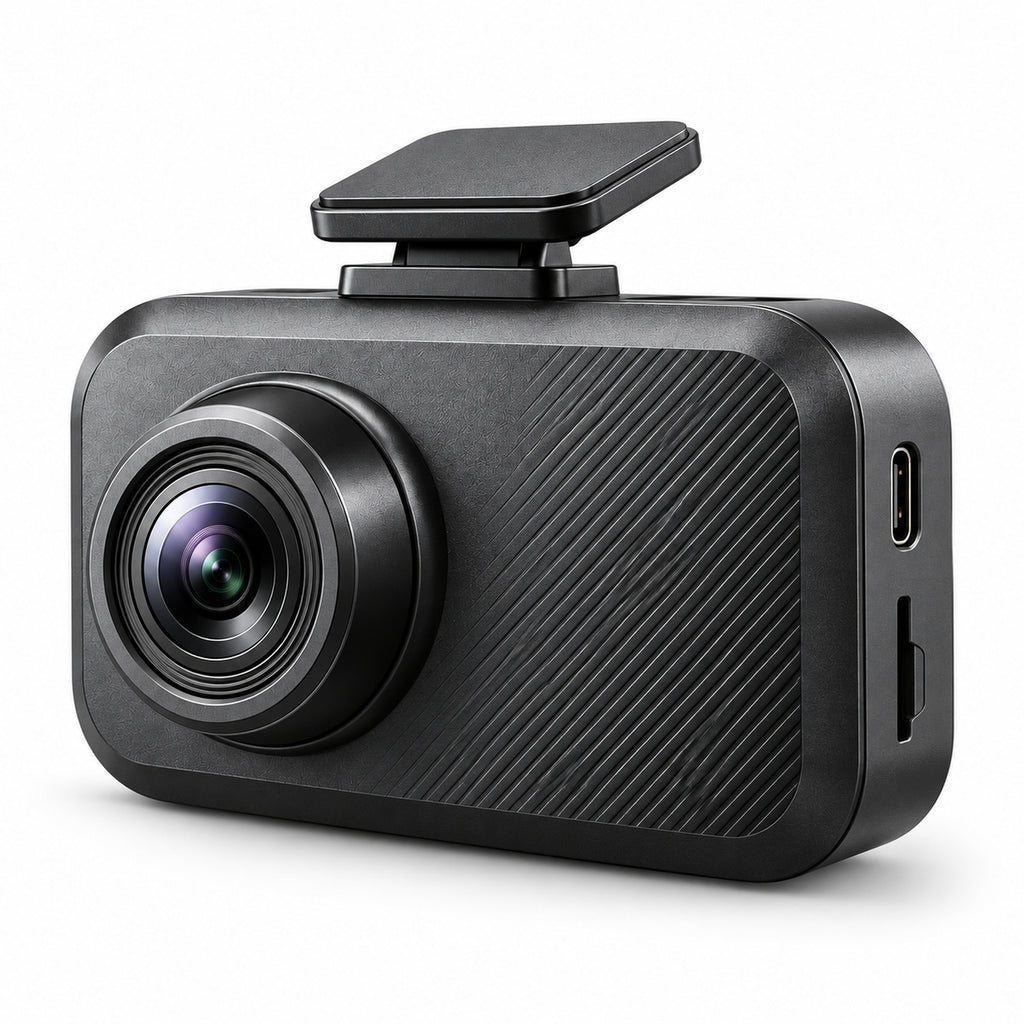

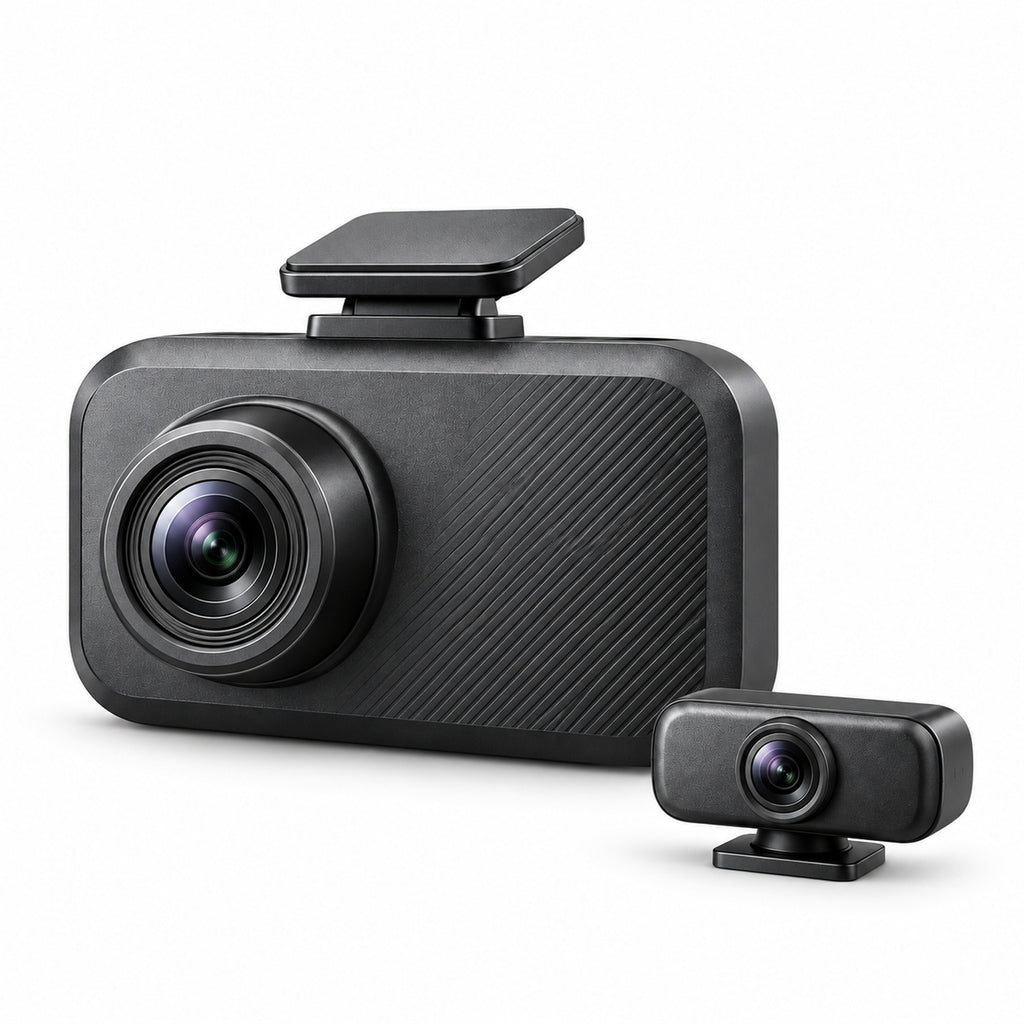

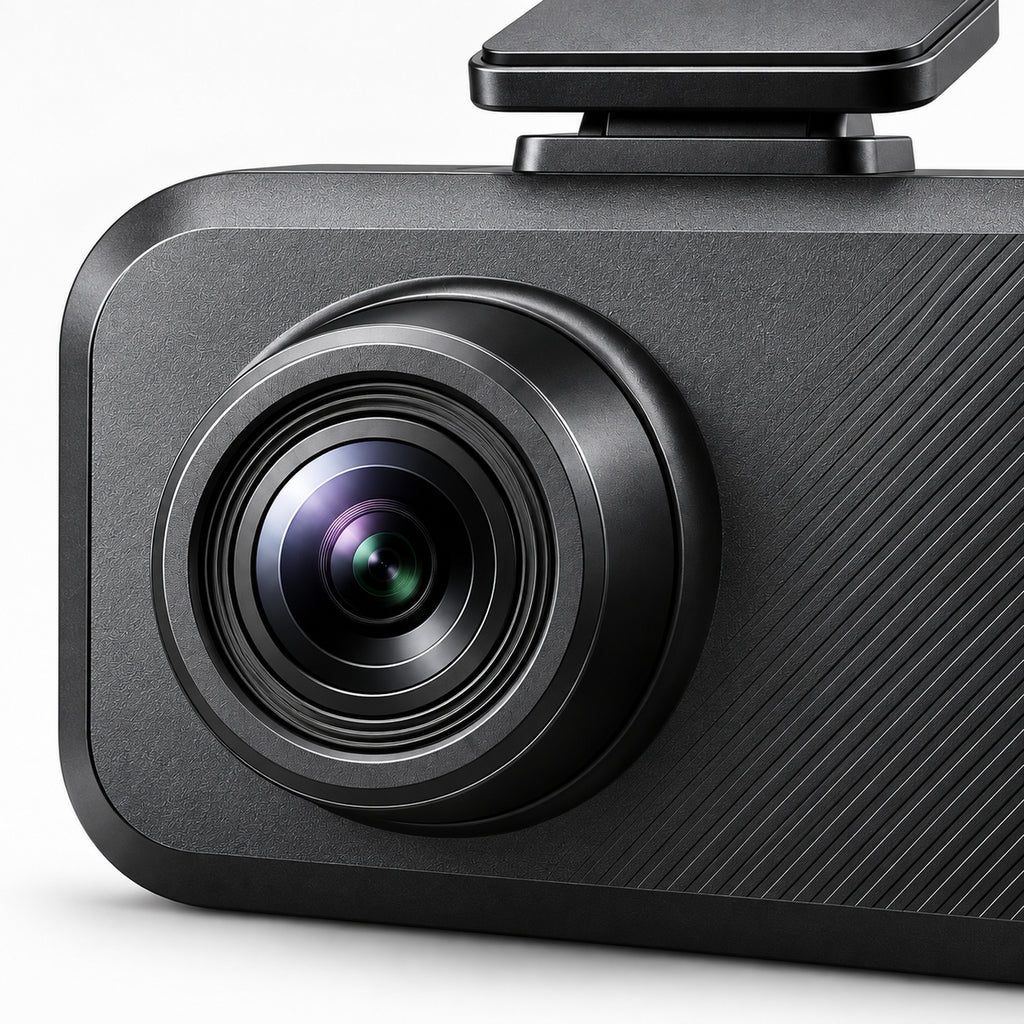

A wide rear display and a separate rear-window camera make this a useful format for recording two directions. The main unit uses a beveled landscape body, an offset front lens and a fine diagonal texture. The compact rear unit sits inside the vehicle on its own adhesive foot.

The intended recording configuration is 1440p at the front and 1080p at the rear at the same time. A wired rear-camera connection provides the link between the two units. Check the cable route and rear-window position before mounting; the rear camera is intended for interior installation.

Power is supplied through a USB-C connection and the included vehicle power adapter. The proposed design uses a supercapacitor for short shutdown support rather than a rechargeable lithium battery; it does not record independently after external power is removed. All recording requires a compatible memory card and a working power supply.

SPECIFICATIONS
Recording channels: 2
Recording resolution and frame rate: Front 2560 × 1440 at 30 fps + rear 1920 × 1080 at 30 fps simultaneously
Lens coverage (approximate diagonal field of view): 140° front / 130° rear
Display: 3.0-inch rear display on main unit
Color: Matte charcoal black
Housing: PC/ABS polymer; optical lens and internal electronics
Storage: One 64 GB high-endurance microSD card planned in the kit
Connectivity: 2.4 GHz local Wi-Fi for parked setup and local clip transfer
Recording features target: Loop recording, manual clip lock, impact-triggered event lock, adjustable audio recording
Power input: 5 V DC through USB-C, up to 2 A
Vehicle adapter: 12–24 V DC accessory socket input, regulated 5 V output
Energy storage: Supercapacitor; no internal lithium-ion battery and no coin-cell battery

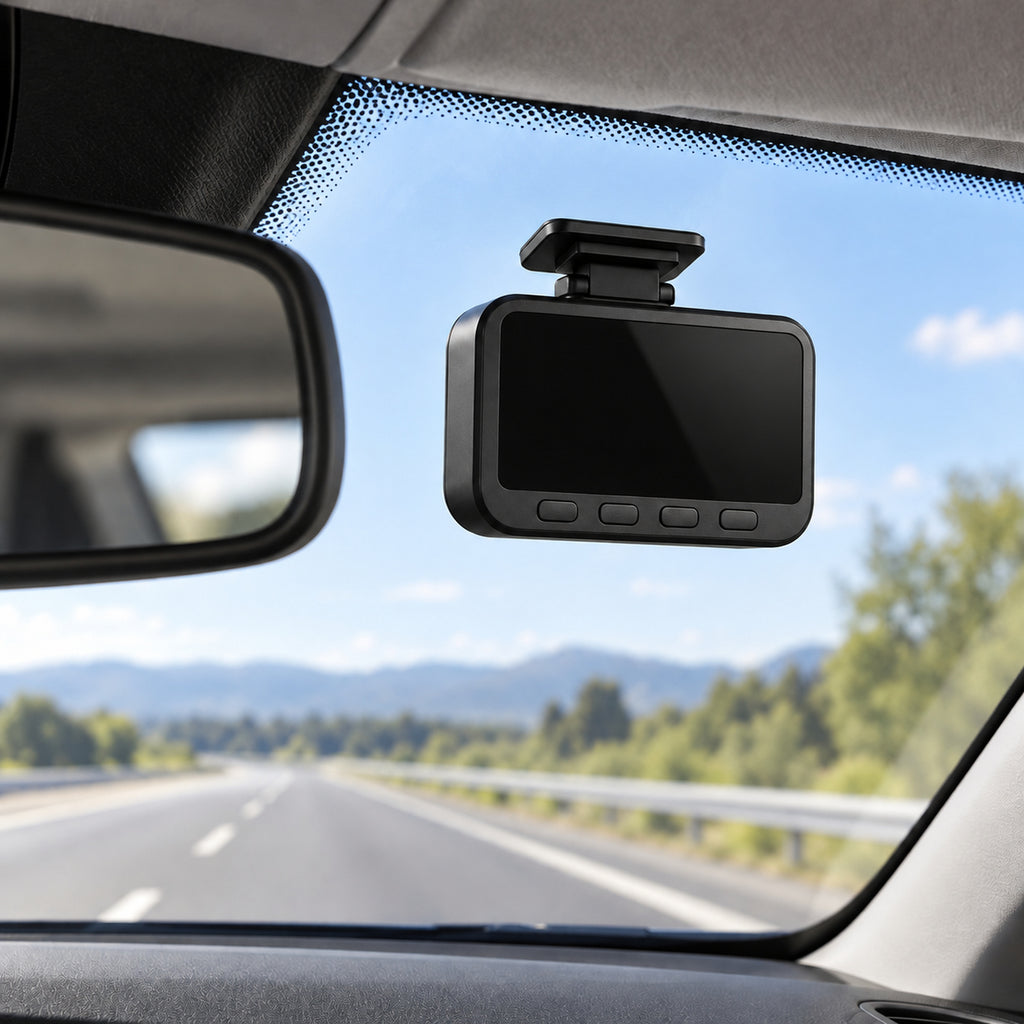

Mounting: Adhesive windshield mount; verify glass angle and clearance
Rear camera mounting: Inside rear window only; not an exterior waterproof camera
Parking recording: Not included in the base specification
GPS / cloud / remote cellular access: Not included in the base specification
Standalone wireless operation: No; continuous wired external power is required

DIMENSIONS
Main 88 × 51 × 33 mm; rear camera 42 × 24 × 26 mm
USB-C power cable length: 3.5 m (11.48 ft)
Rear connection cable length: 6.0 m (19.69 ft)
Outer shipping carton: 22 × 16 × 8 cm

WEIGHT
Camera body weight, main and rear units combined: 0.175 kg
Complete sellable kit excluding outer shipping carton: 0.460 kg
Packed shipment: 0.530 kg

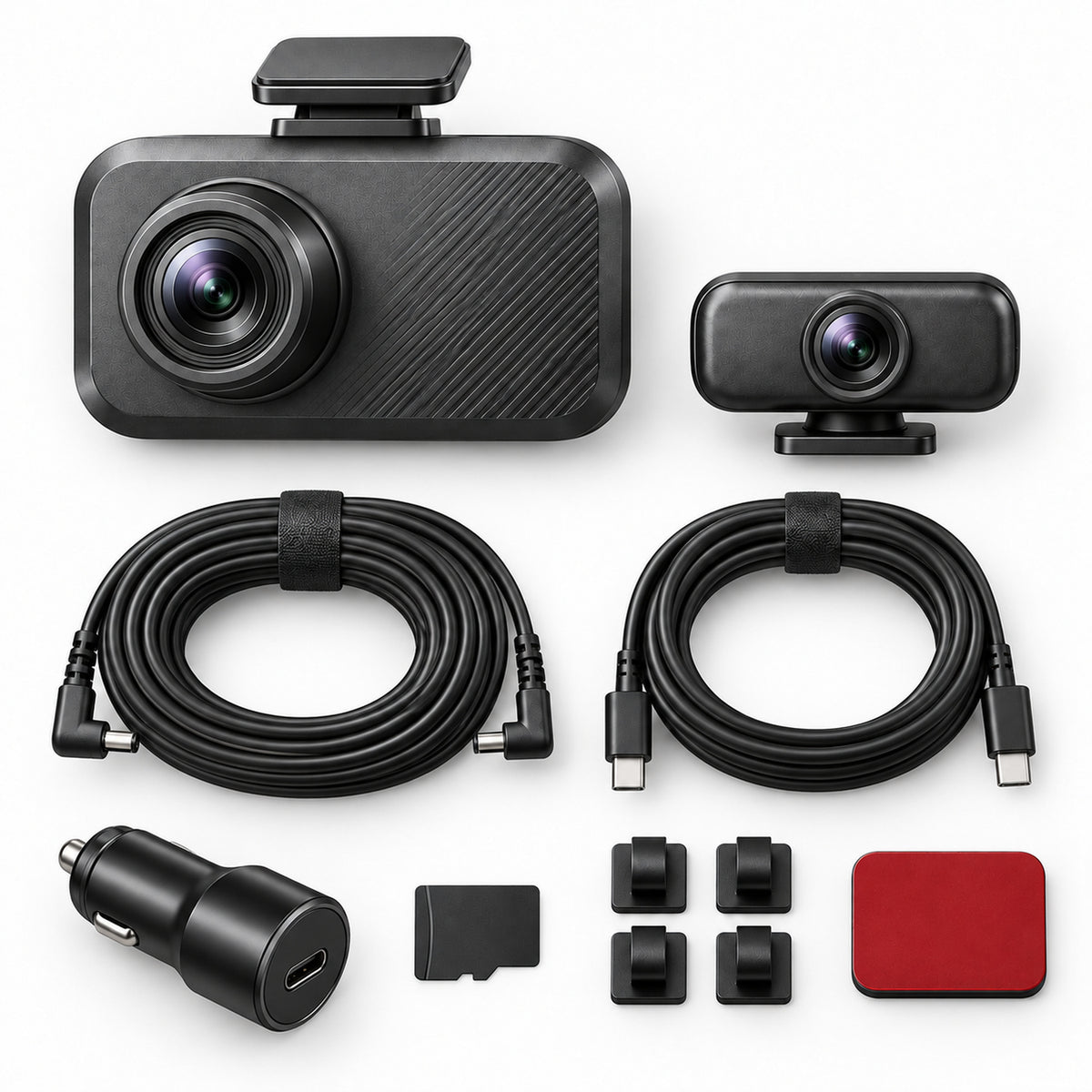

BOX CONTENTS
1 × Main dash camera with adhesive mount
1 × Interior rear-window camera with adhesive mount
1 × 6.0 m rear-camera connection cable
1 × 3.5 m USB-C power cable
1 × 12–24 V vehicle power adapter
1 × Blank 64 GB high-endurance memory card
4 × Cable clips
1 × Spare adhesive pad
