Portrait Screen Front Dash Cam

DESCRIPTION

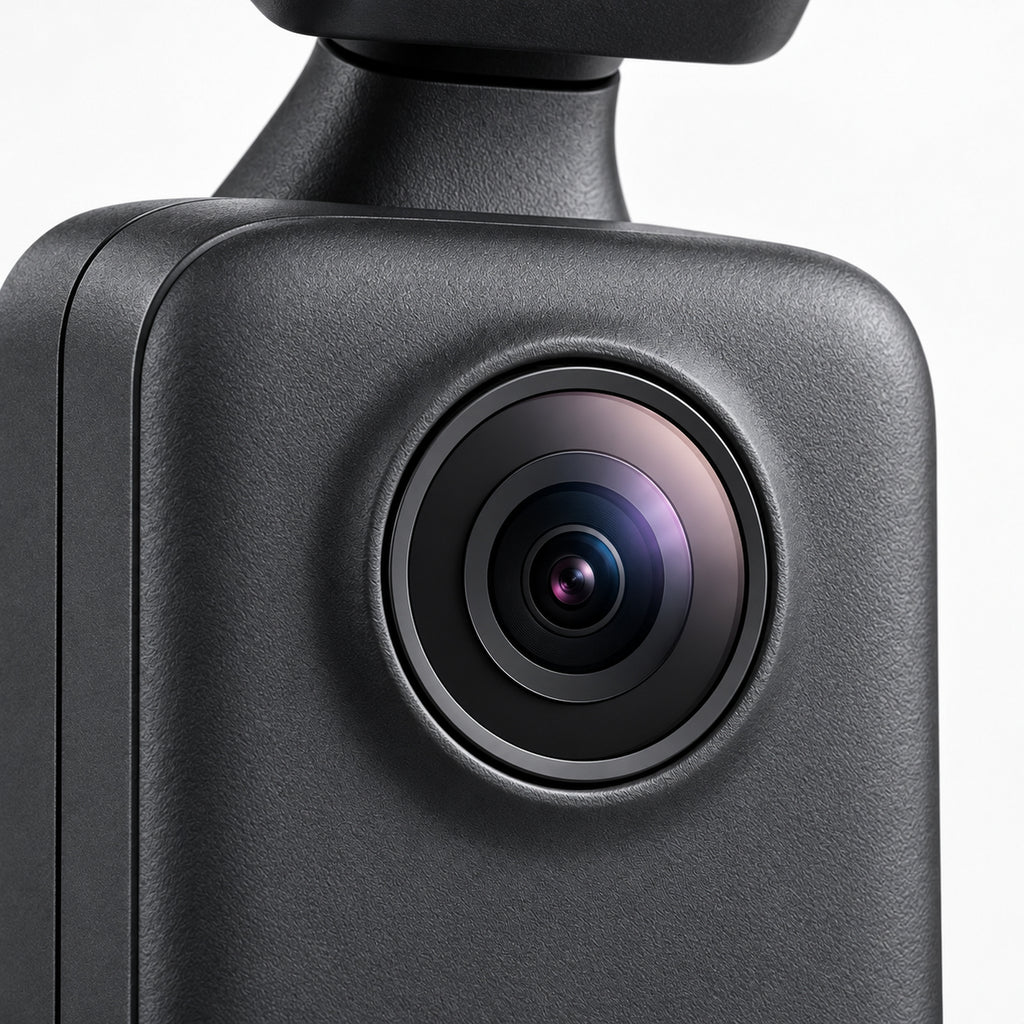

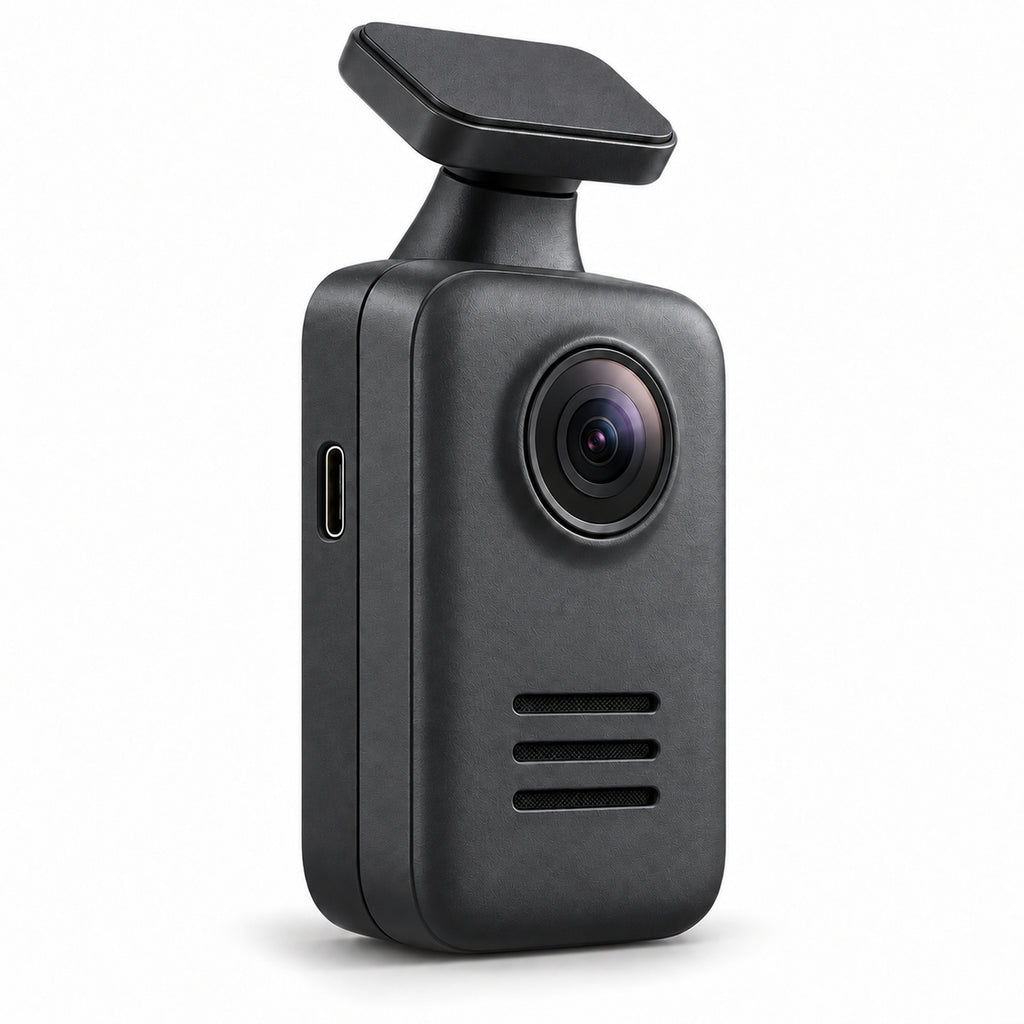

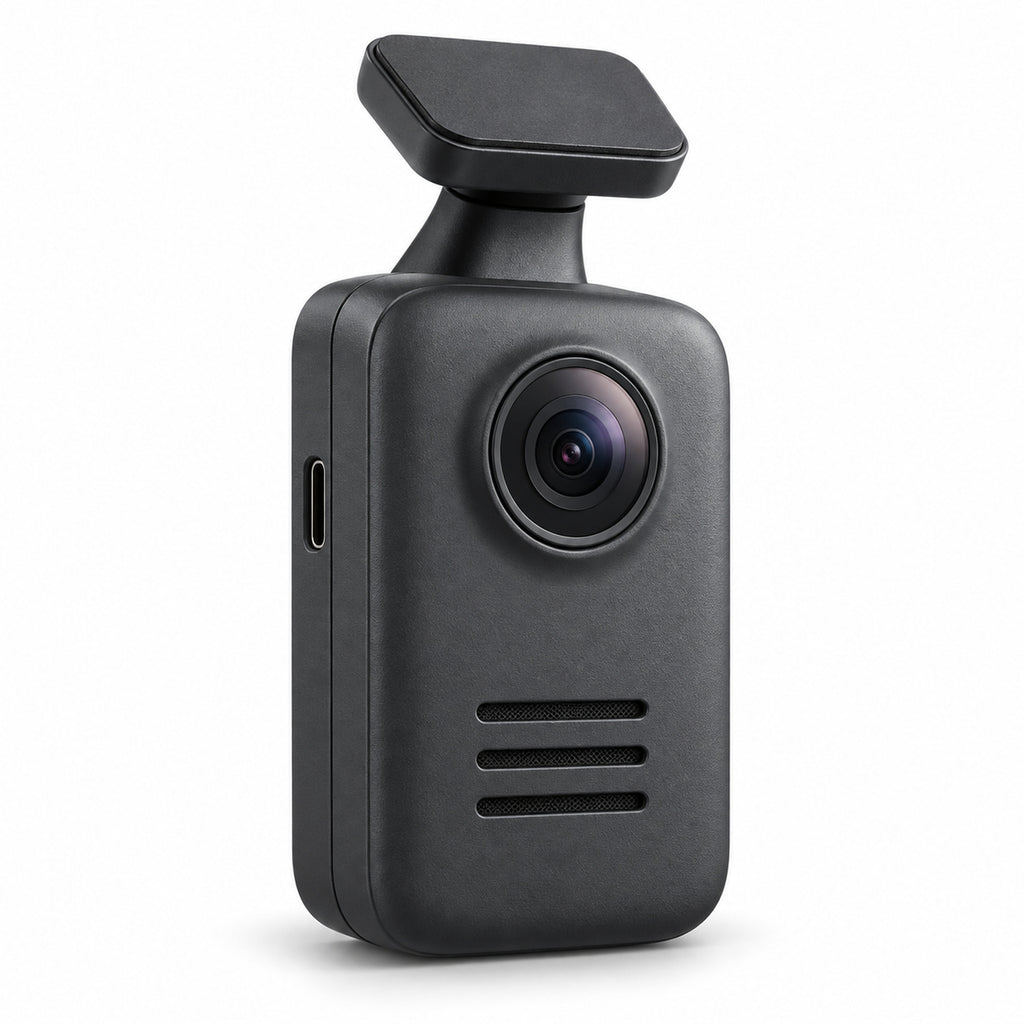

An upright body and portrait display offer a different alternative to wide rectangular recorders. Three recessed front grooves and a centered lens create an orderly design. The rear screen provides a convenient view for checking the camera angle before driving.

The proposed specification includes 1440p front recording and physical controls below the display. A short mounting neck supports windshield placement, while the narrow body helps keep the installation organized. Footage is stored locally on the supplied memory card.

Power is supplied through a USB-C connection and the included vehicle power adapter. The proposed design uses a supercapacitor for short shutdown support rather than a rechargeable lithium battery; it does not record independently after external power is removed. All recording requires a compatible memory card and a working power supply.

SPECIFICATIONS
Recording channels: 1
Recording resolution and frame rate: 2560 × 1440 at 30 fps
Lens coverage (approximate diagonal field of view): 145° front

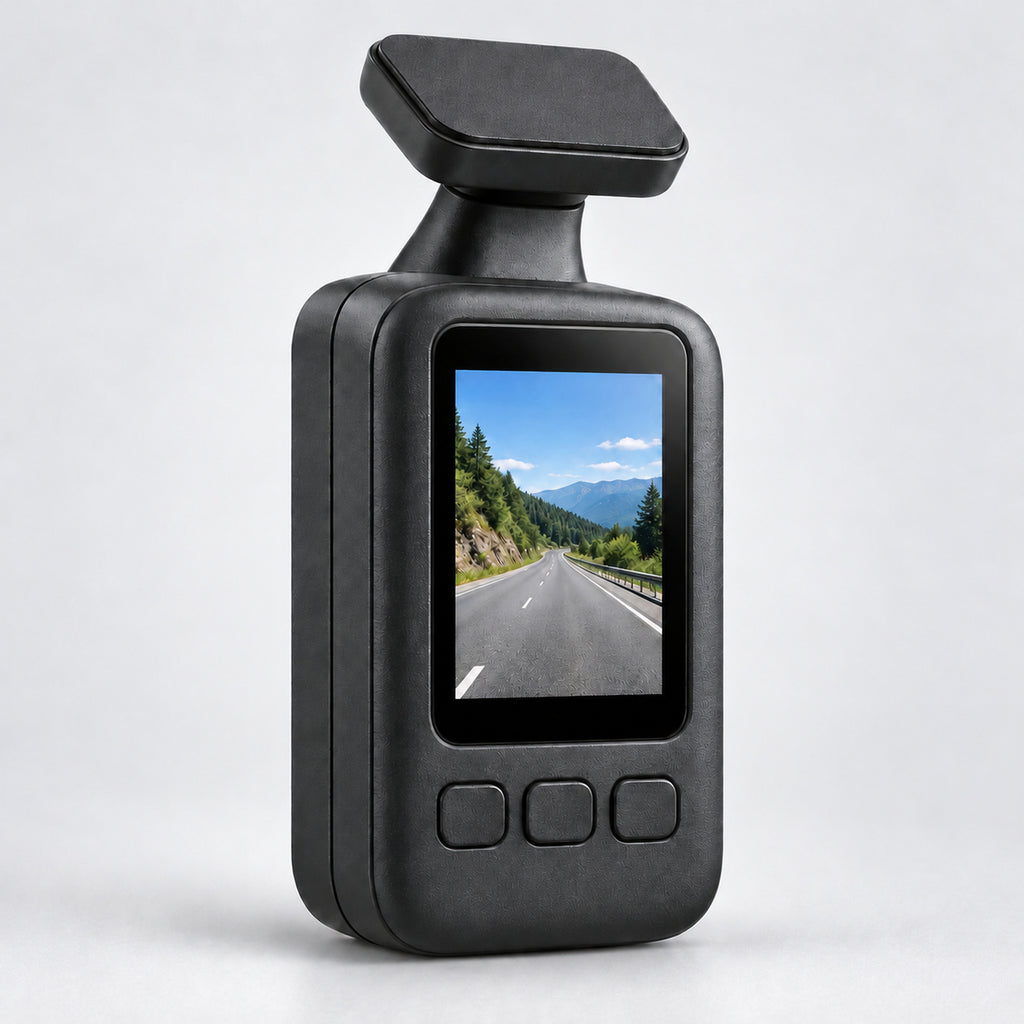

Display: 2.0-inch portrait rear display
Color: Matte charcoal black
Housing: PC/ABS polymer; optical lens and internal electronics
Storage: One 64 GB high-endurance microSD card planned in the kit
Connectivity: 2.4 GHz local Wi-Fi for parked setup and local clip transfer
Recording features: Loop recording, manual clip lock, impact-triggered event lock, adjustable audio recording
Power input: 5 V DC through USB-C, up to 2 A
Vehicle adapter: 12–24 V DC accessory socket input, regulated 5 V output
Energy storage: Supercapacitor; no internal lithium-ion battery and no coin-cell battery

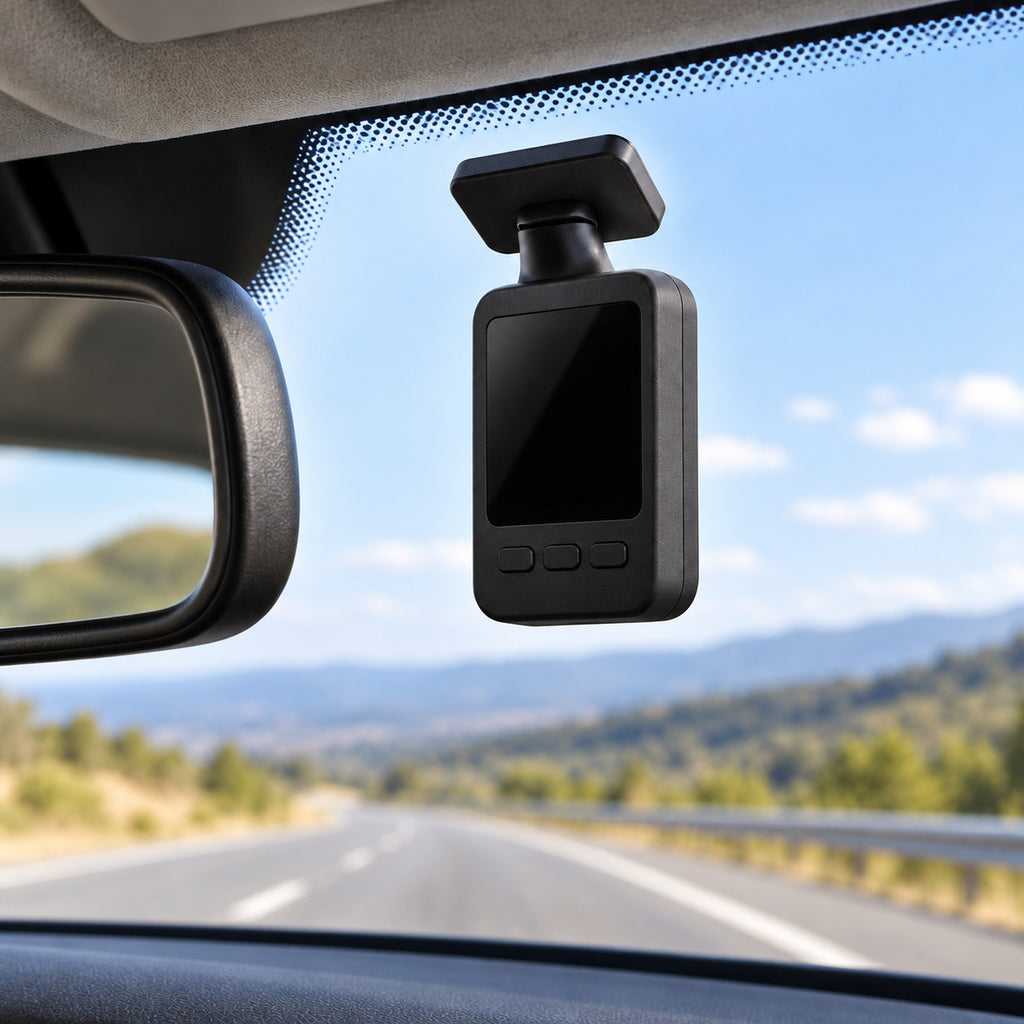

Mounting: Adhesive windshield mount; verify glass angle and clearance
Rear camera mounting: No separate rear camera included
Parking recording: Not included in the base specification
GPS / cloud / remote cellular access: Not included in the base specification
Standalone wireless operation: No; continuous wired external power is required

DIMENSIONS
48 × 78 × 29 mm
USB-C power cable length: 3.5 m (11.48 ft)
Rear connection cable length: Not included
Outer shipping carton: 18 × 13 × 7 cm

WEIGHT
Camera body weight, main unit: 0.125 kg
Complete sellable kit excluding outer shipping carton: 0.320 kg
Packed shipment: 0.390 kg

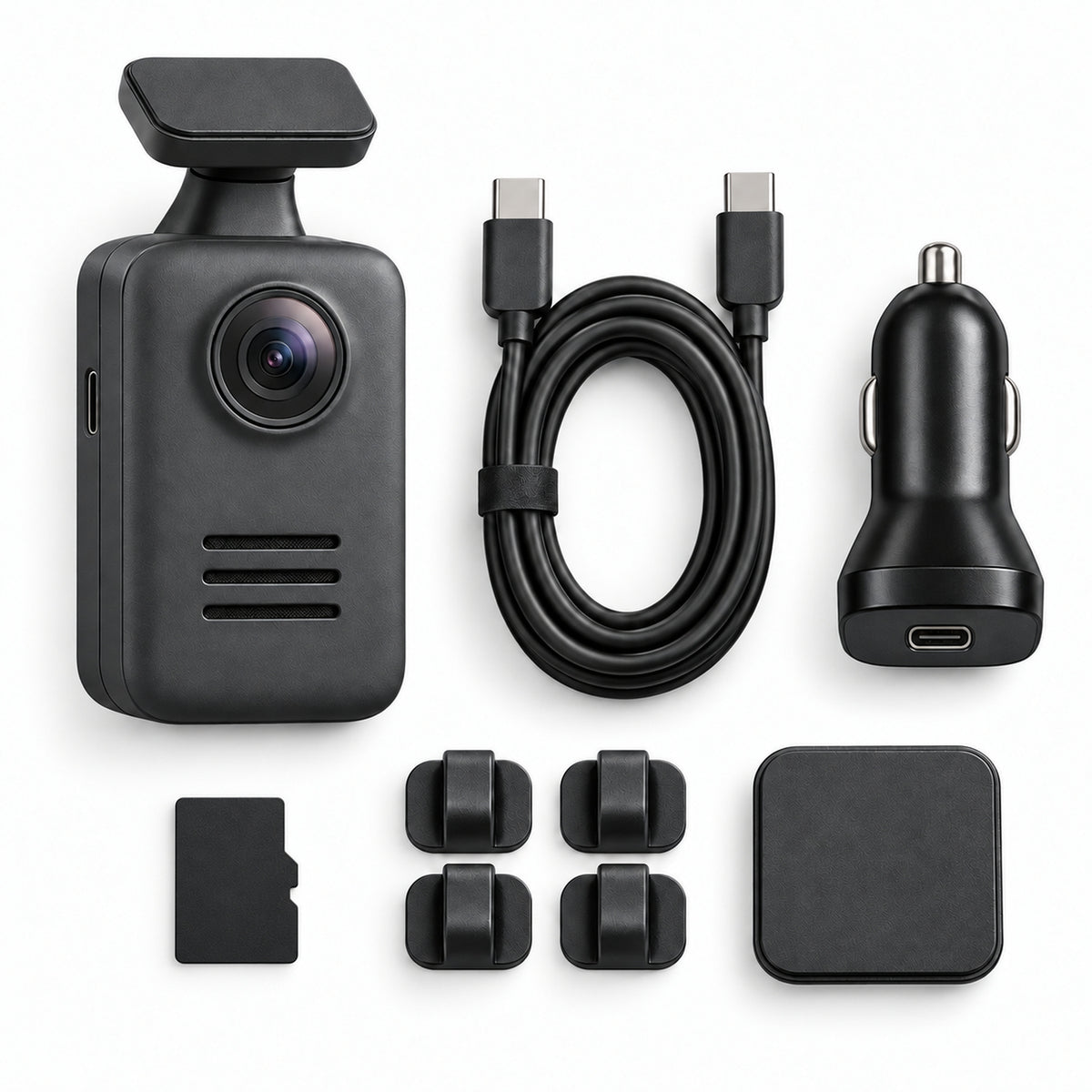

BOX CONTENTS
1 × Main dash camera with adhesive mount
1 × 3.5 m USB-C power cable
1 × 12–24 V vehicle power adapter
1 × Blank 64 GB high-endurance memory card
4 × Cable clips
1 × Spare adhesive pad
