Three Channel Front Cabin and Rear Dash Cam

DESCRIPTION

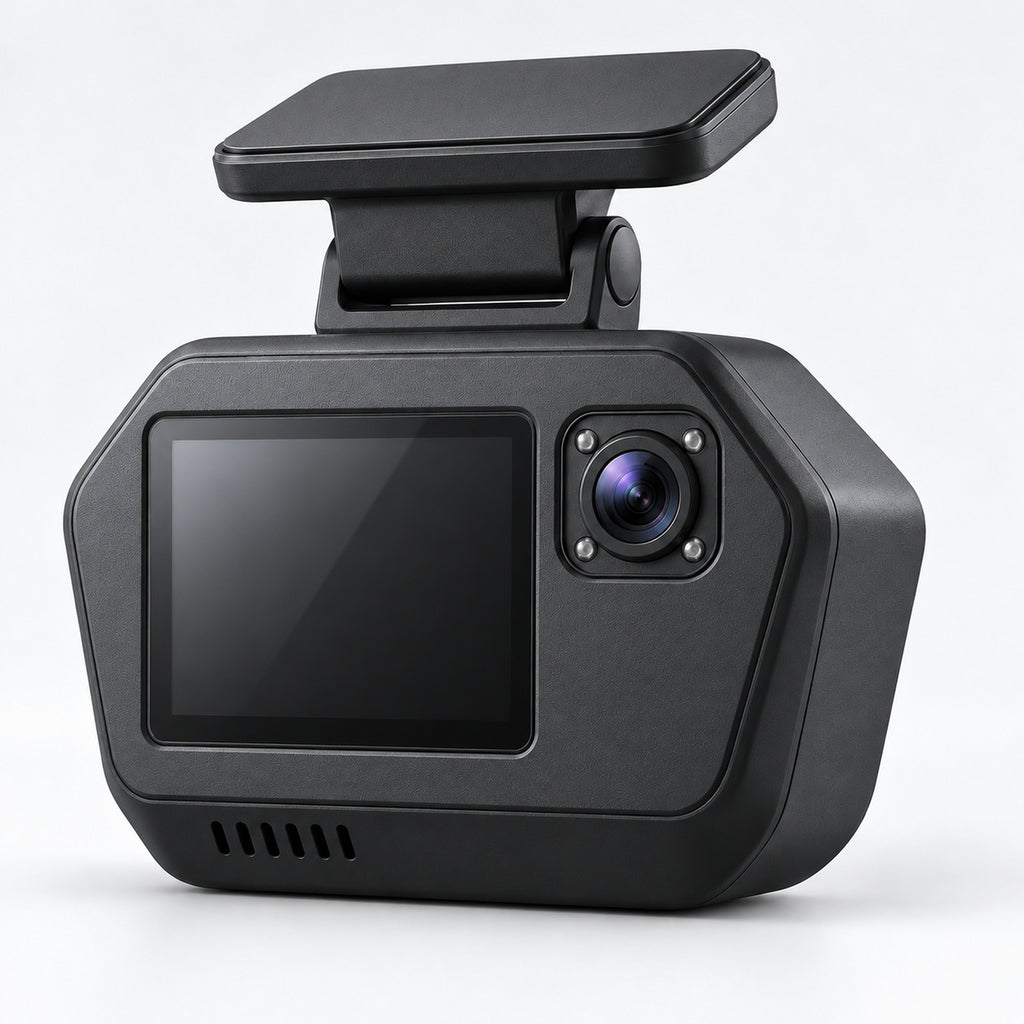

A softened hexagonal body gives this three-channel kit a recognizable silhouette without prominent trim. The main unit combines a front lens, a rear-facing screen and a small cabin lens. A separate compact rear-window camera completes the planned three-view layout.

The intended configuration records the front, cabin and rear together in 1080p, with the channel frame rates listed below. Cabin infrared illumination is planned for low-light interior recording. The rear unit connects by cable and mounts inside the rear window. This is three directional views, with gaps between them; it does not provide complete 360-degree coverage.

Power is supplied through a USB-C connection and the included vehicle power adapter. The proposed design uses a supercapacitor for short shutdown support rather than a rechargeable lithium battery; it does not record independently after external power is removed. All recording requires a compatible memory card and a working power supply.

SPECIFICATIONS
Recording channels: 3
Recording resolution and frame rate: Front 1920 × 1080 at 30 fps + cabin 1920 × 1080 at 25 fps + rear 1920 × 1080 at 25 fps simultaneously

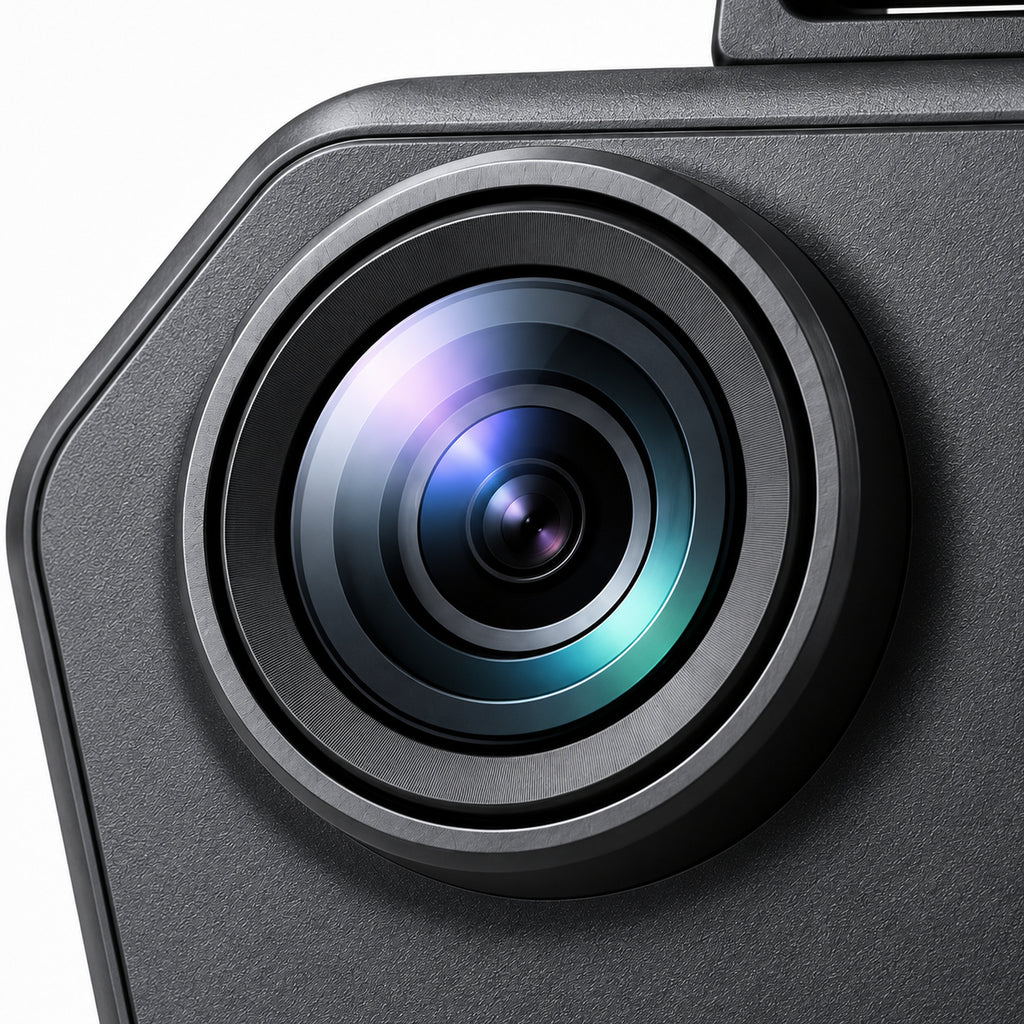

Lens coverage (approximate diagonal field of view): 140° front / 130° cabin / 130° rear
Display: 2.0-inch rear display on main unit
Color: Matte charcoal black
Housing: PC/ABS polymer; optical lens and internal electronics
Storage: One 64 GB high-endurance microSD card in the kit
Connectivity: 2.4 GHz local Wi-Fi for parked setup and local clip transfer
Recording features: Loop recording, manual clip lock, impact-triggered event lock, adjustable audio recording
Cabin infrared illumination: On the cabin lens only

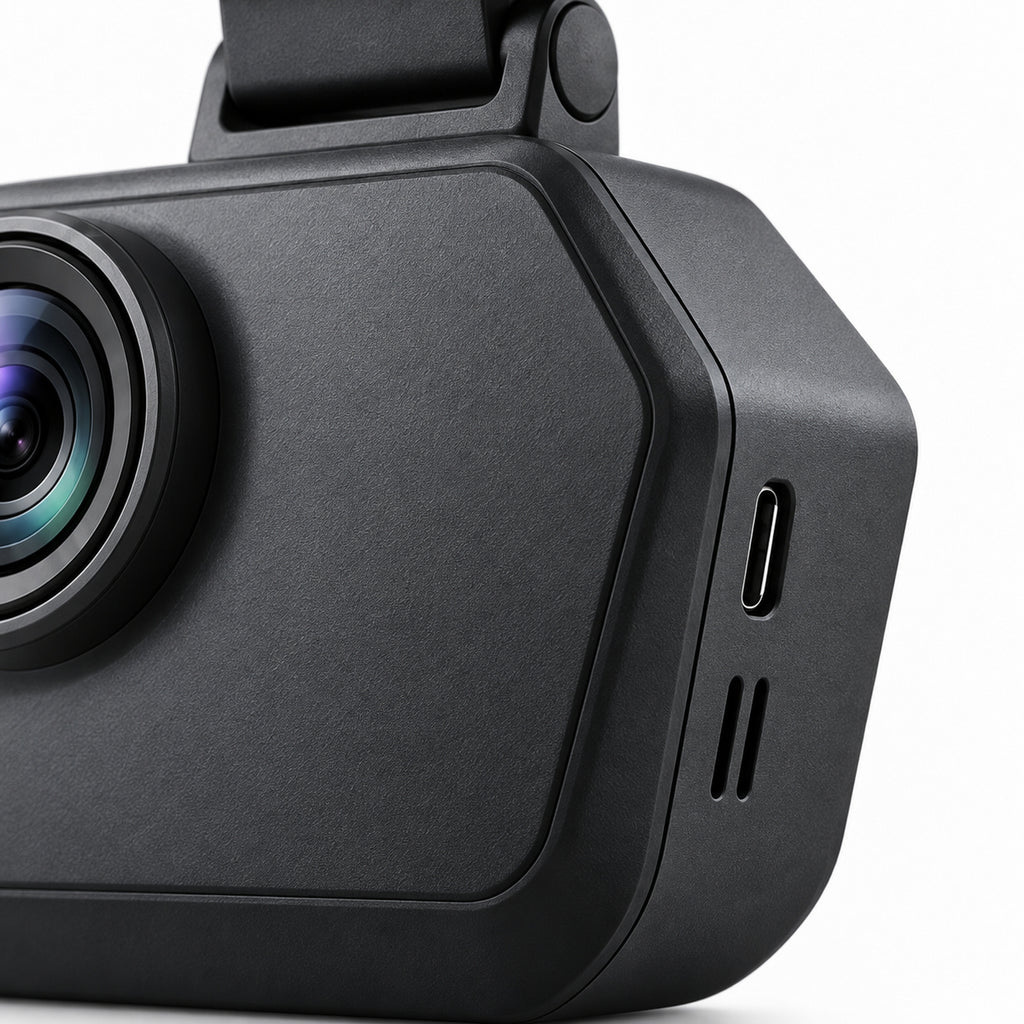

Power input: 5 V DC through USB-C, up to 3 A
Vehicle adapter: 12–24 V DC accessory socket input, regulated 5 V output
Energy storage: Supercapacitor; no internal lithium-ion battery and no coin-cell battery

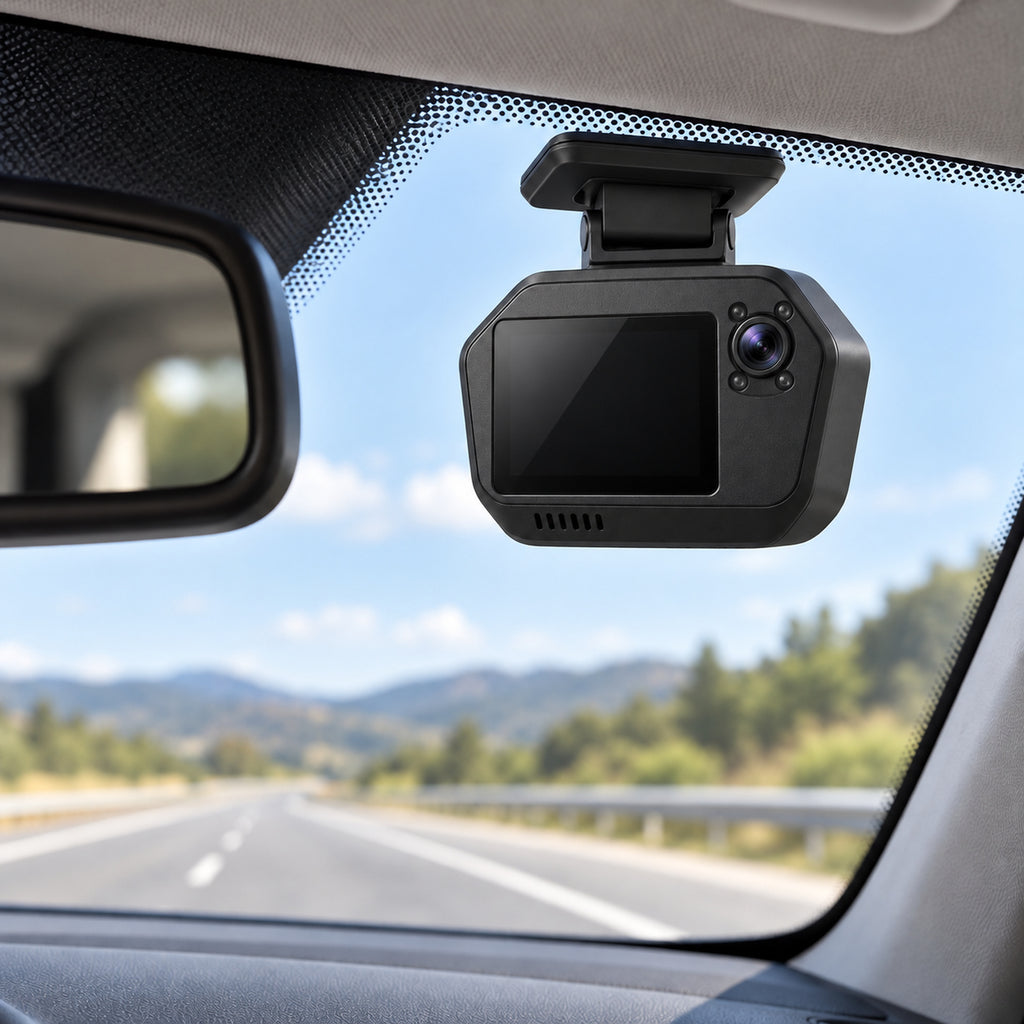

Mounting: Adhesive windshield mount; verify glass angle and clearance
Rear camera mounting: Inside rear window only; not an exterior waterproof camera
Parking recording: Not included in the base specification
GPS / cloud / remote cellular access: Not included in the base specification
Standalone wireless operation: No; continuous wired external power is required

DIMENSIONS
Main 81 × 63 × 39 mm; rear camera 44 × 25 × 26 mm
USB-C power cable length: 3.5 m (11.48 ft)
Rear connection cable length: 6.0 m (19.69 ft)
Outer shipping carton: 22 × 16 × 8 cm

WEIGHT
Camera body weight, main and rear units combined: 0.205 kg
Complete sellable kit excluding outer shipping carton: 0.500 kg
Packed shipment: 0.570 kg

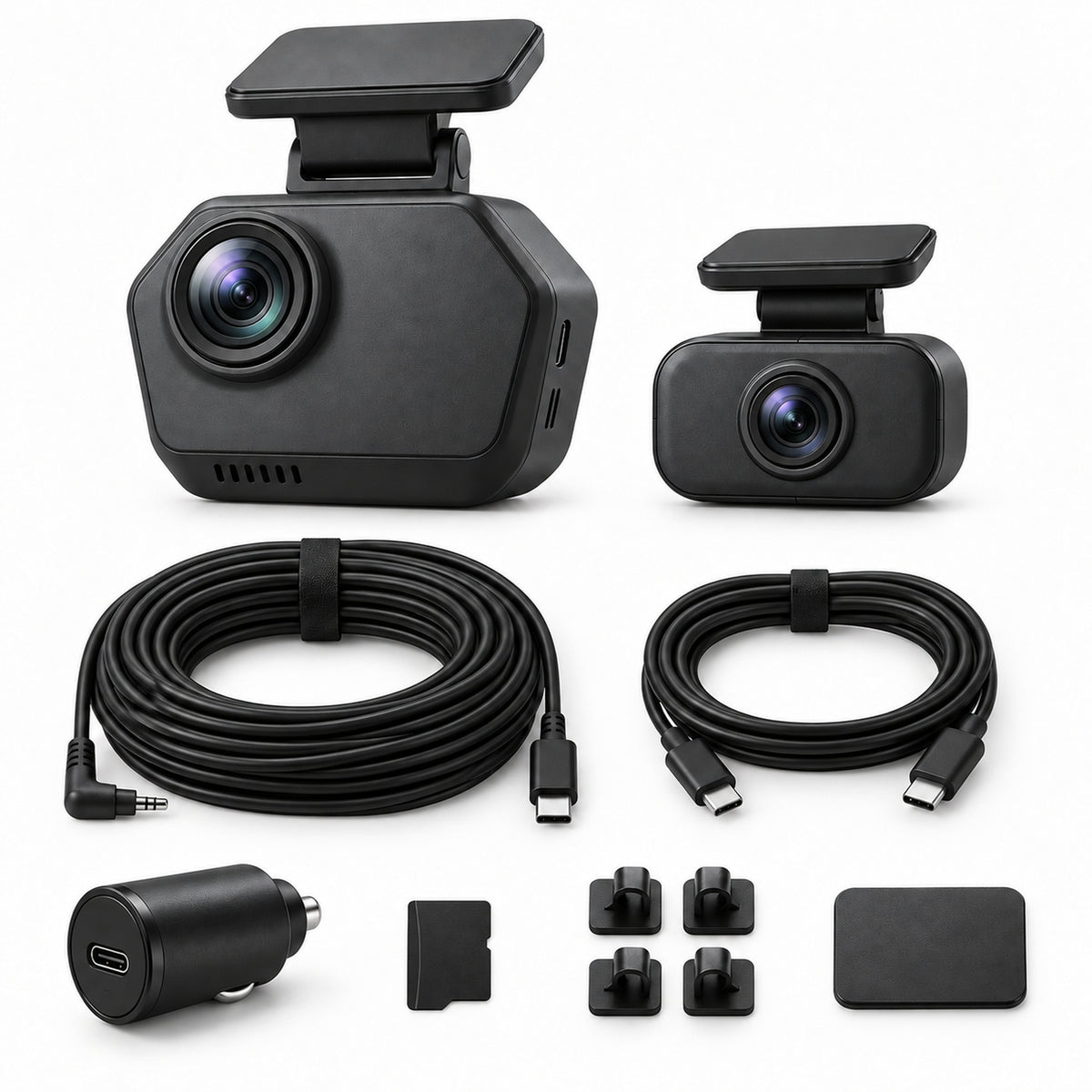

BOX CONTENTS
1 × Main dash camera with adhesive mount
1 × Interior rear-window camera with adhesive mount
1 × 6.0 m rear-camera connection cable
1 × 3.5 m USB-C power cable
1 × 12–24 V vehicle power adapter
1 × Blank 64 GB high-endurance memory card
4 × Cable clips
1 × Spare adhesive pad
